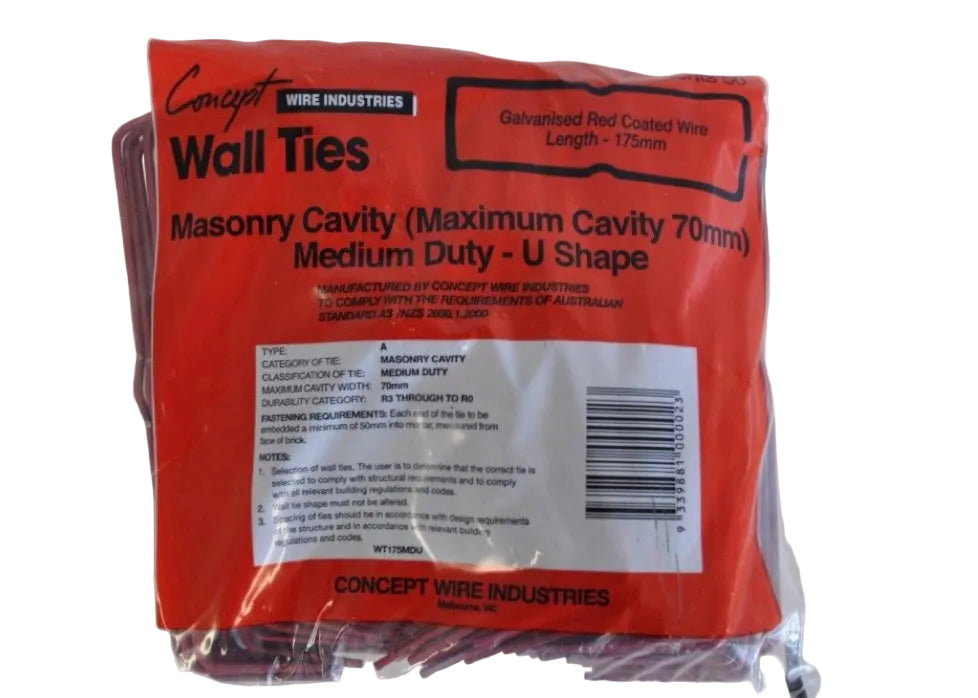

Concept Wire Wall Ties Masonry Cavity (Maximum Cavity 70mm) Medium Duty - U Shape - WT175MDU

MANUFACTURED BY CONCEPT WIRE INDUSTRIES TO COMPLY WITH THE REQUIREMENTS OF AUSTRALIAN STANDARD AS2699.1.2020

TYPE :                                       A

CATEGORY OF TIE :                MASONRY CAVITY

CLASSIFICATION OF TIE :      MEDIUM DUTY

MAXIMUM CAVITY WIDTH :   70mm

DURABILITY CATEGORY :       R3 THROUGH TO R0

FASTENING REQUIREMENTS: Each end of the tie to be embedded a minimum of 50mm into mortar, measured from dace of brick.

NOTES:

1. SELECTION OF WALL TIES.THE USER IS TO DETERMINE THAT THE CORRECT TIE IS SELECTED TO COMPLY WITH STRUCTURAL REQUIREMENTS AND TO COMPLY WITH ALL RELEVANT BUILDING REGULATIONS AND CODES.
2. WALL TIE SHAPE MUST NOT BE ALTERED.
3. SPACING OF TIES SHOULD BE IN ACCORDANCE WITH DESIGN REQUIREMENTS OF THE STRUCTURE AND IN ACCORDANCE WITH RELEVANT BUILDING REGULATIONS AND CODES.

                                                                        WT175MDU
